Foot clamp FS for tubes Ø30mm
| Quantity | Unit price |
|---|---|
| To 9 |
€5.00
|
| To 49 |
€4.85
|
| From 50 |
€4.60
|
available immediately
Product information "Foot clamp FS for tubes Ø30mm"

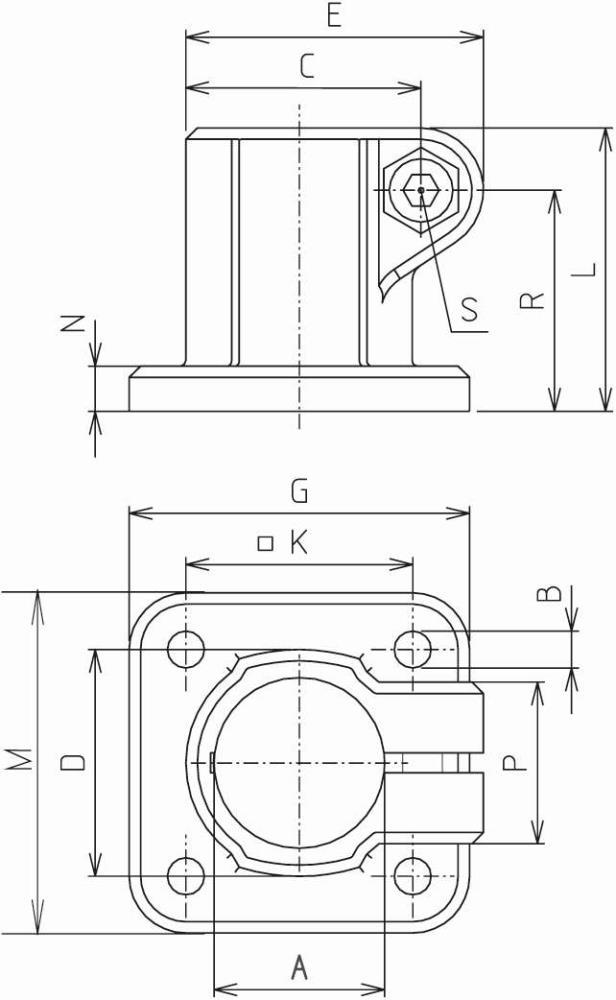

Clamping A: 30mm (reducing sleeves to 25mm and 20mm are available separately)
B: 6.5mm
C: 41.5mm
D: 40mm
E: 52.5mm
G: 60mm
K: 40mm
L: 50mm
M: 60mm
N: 8mm
P: 28.5mm
R: 39mm
S: M8
Weight: 75g
Tip:
You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.
And here you will find our matching carbon square tubes.
